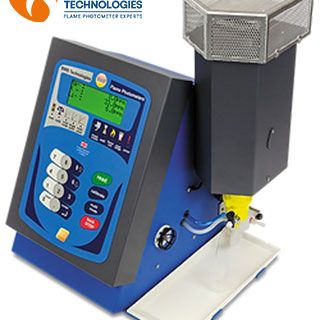

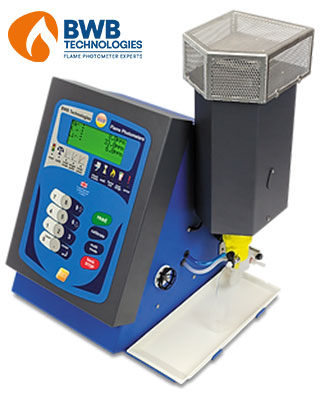

專門對合成和生物燃料生產線常見的四種原子進行可靠、準確的分析。 在這個強大且不斷發展的全球產業結構中，與合成燃料或生物燃料生產的相關行業扮演著重要的角色。對於這類的衍生產品，BWB Technologies 提供了一種混合火焰光度計，我們將其命名為 Syn Fuels。 BWB SYN FUELS 火焰光度計是第一款也是唯一一款能夠同時偵測並顯示所有 4 種元素的 4 通道火焰光度計。BWB SYN FUELS 是一款高品質、高性能的儀器，採用現代技術來提高準確性和穩定性，同時顯著縮短分析時間。 BWB SYN FUELS 火焰光度計的流體處理部分，採用了專有的工程熱塑性塑料，這些熱塑性塑料具有高度耐化學性，可承受合成燃料生產設施中使用的溶劑。 我們在全球的客戶經過統計，大多數是甜菜或甘蔗精煉廠購買 BWB Sugar ，而生物轉化工廠則購買 Syn Fuels FES。 產品特點: 同時偵測並顯示所有 4 種分析元素。 「IRS」（內部參考標準）銫或鋰選項。 直覺的使用者介面真正易於使用。 顯示提示引導操作。 內建空氣壓縮機。 含括基本儀器所需器具，可協助您入門。 透過電腦連結共享數據。 操作員獨立確定結果。 使用者可選4 個測量單位。 使用者可選擇小數位。 選購的整合式印表機使用現成的紙張（新增選項）。 提供 IQ、OQ、PQ 基於網路的認證。 校正 Ca 以消除高濃度 Na 的干擾。
Instrument Specifications
| Feature | Specification |
|---|---|
| Sample rate | 2 – 3.5ml/min |
| Tubing materials | PTFE and Teflon |
| Required desk space for Instrument | 50cm (H) x 45cm (W) x 45cm (D) *For Safety reasons the Flamephotometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney. |
| Instrument size | Syn Fuels Flame Photometer 51cm (H) x 39cm (W) x 35cm (D) (20in x 15in x 14in) |
| Shipping | 65cm (H) x 49cm (W) x 43cm (D) (25in x 19in x 17in) |
| Weight | Syn Fuels Flame Photometer – 14kg (30.8lbs) Shipping – 25kg (55.1lbs) |
| Power requirements | 100V – 250V AC at 50 or 60Hz |
| Readout | LCD four line alpha numeric back lit |
| Optimal range | Single point calibration: Na 0.1 – 60ppm K 0.05 – 100ppm Li 0.05 – 50ppm Ca 1.0 – 100ppm Multi Point Calibration: Na 0.1 – 1000ppm K 0.05 – 1000ppm Li 0.05 – 1000ppm Ca 1.0 – 1000ppm |
| Reproducibility | <1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation). |
| Specificity | Na/K/Li = <1% to each other when equal in concentration at <100ppm |
| Limit of detection (LOD) and limit of quantification (LOQ) | LOD LOQ Na – 0.03ppm Na – 0.1ppm K – 0.02ppm K – 0.05ppm Li – 0.02ppm Li – 0.05ppm Ca – 0.3ppm Ca – 1ppm |
| Time to stability | Less than 15 seconds after sample is introduced into the flame |
| Ions measured | Simultaneous measurement of Na, K, Li, Ca |
| Interfaces | USB 0-2.5 volt output (based on sample concentration linked to element of user's choice) Optional 4-20mA output in place of the above Optional integrated printer. CSV and .PDF generated reports and files via FP-PC software Collection Cup fitted as standard allowing live reading |
| Recommended minimum warm up time based on ambient temperature | 21°C – 25 minutes |
| Fuel requirement | Propane, Butane, or Natural Gas * regulated to 1-9Bar. Flow rate of 0.4l/min *with modifications. BWB Technologies recommends either Propane or Butane for optimum results. |
- Simultaneous detection and display of all 4 atoms of interest
- “IRS” (Internal Reference Standard) caesium or lithium option
- Intuitive user interface for true ease of use
- Display prompts step by step operation
- Built-in air compressor
- Solutions and labware included
- Data sharing via pc link
- Operator independent determination of results
- 4 user selectable units of measure
- User selectable decimal places
- Optional integrated printer uses readily available paper (added option)
- IQ, OQ, PQ web-based certification available
- Correction of Ca for the interference from high levels of Na
