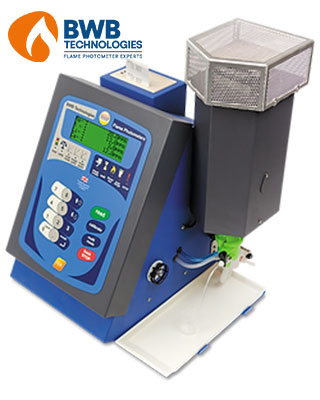

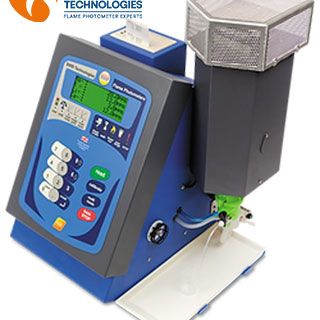

Soil 火焰光度計
產品型號：Soil Flame Photometer元素K對於植物生長至關重要，數十年來一直使用火焰光度法對肥料和土壤基質進行分析。BWB Soil是根據肥料和土壤基質的特定分析以及各種現場操作要求而設計。SOIL 是以屢獲殊榮的 BWB XP 型號為基礎作延伸，提供了我們基礎產品的所有優勢，並超越了農業行業的分析要求。
BWB SOIL 提供增強的鈣檢測以及鈉和鉀檢測，並可選擇利用鋰作為內部參考標準。
該儀器的便攜性和「只需添加氣體」配置允許將儀器安裝在貨車後面(需有電源供應110V以上)，並在不同地理位置進行現場分析。標配熱感式印表機，可全程保持樣品分析的可追溯性。
產品特點:
- 同時偵測並顯示所有 3 種分析元素。
- 可用“IRS”（內部參考標準）。
- 直覺的使用者介面真正易於使用。
- 顯示提示引導操作。
- 內建空氣壓縮機。
- 含括基本儀器所需器具，可協助您入門。
- 透過電腦連結共享數據。
- 操作員獨立確定結果。
- 使用者可選4 個測量單位。
- 使用者可選擇小數位。
- 整合式印表機使用現成的紙張。
- 提供 IQ、OQ、PQ 基於網路的認證。
- 可與 BWB “Collection Cup”功能或我們的 AFHS 自動樣品處理系統一起使用。
- 校正 Ca 以消除高濃度 Na 的干擾。
|
Sample rate 2 – 3.5ml/min Tubing materials Silicone and Tygon®
Required desk space for Instrument 50cm (H) x 45cm (W) x 45cm (D)* For Safety reasons the Flame photometer requires 1m of
Instrument size Soil Flame Photometer
Shipping
Weight Soil Flame Photometer – 14kg (30.8lbs) Shipping – 25kg (55.1lbs)
Power requirements 100V – 250V AC at 50 or 60Hz
Readout LCD, four line, alpha numeric, back lit. |
Optimal range Na 0.1 – 60ppm K 0.05 – 100ppm Ca 1.0 – 100ppm
Multi Point Calibration Na 0.1 – 1000ppm K 0.05 – 1000ppm Ca 1.0 – 1000ppm
Reproducibility <1% Coefficient of variability for 20 consecutive
Specificity Na/K/Li = <1% to each other when
Limit of detection (LOD) and limit LOD LOQ Na – 0.03ppm Na – 0.1ppm K – 0.02ppm K – 0.05ppm Ca – 0.3ppm Ca – 1ppm |
Time to stability
Ions measured Simultaneous measurement of Na, K, and Ca
Interfaces USB 0-2.5 volt output Optional 4-20mA output in place of .CSV and .PDF generated reports and files via FP-PC software
Recommended minimum warm up time 21ºC – 25 minutes
Fuel requirement Propane, Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min *with modifications. BWB Technologies recommends either Propane or |
- Simultaneous detection and display of all 3 atoms of interest
- “IRS” (Internal Reference Standard) available
- Intuitive user interface for true ease of use
- Display prompts step by step operation
- Built-in air compressor
- Solutions and labware included
- Data sharing via pc link
- Operator independent determination of results
- 4 user selectable units of measure
- User selectable decimal places
- Integrated printer uses readily available paper
- IQ, OQ, PQ web-based certification available
- Can be used with either the BWB collection cup feature or our AFHS automated sample handling system
- Correction of Ca for the interference from high levels of Na
|
Sample rate 2 – 3.5ml/min Tubing materials Silicone and Tygon®
Required desk space for Instrument 50cm (H) x 45cm (W) x 45cm (D)* For Safety reasons the Flame photometer requires 1m of
Instrument size Soil Flame Photometer
Shipping
Weight Soil Flame Photometer – 14kg (30.8lbs) Shipping – 25kg (55.1lbs)
Power requirements 100V – 250V AC at 50 or 60Hz
Readout LCD, four line, alpha numeric, back lit. |
Optimal range Na 0.1 – 60ppm K 0.05 – 100ppm Ca 1.0 – 100ppm
Multi Point Calibration Na 0.1 – 1000ppm K 0.05 – 1000ppm Ca 1.0 – 1000ppm
Reproducibility <1% Coefficient of variability for 20 consecutive
Specificity Na/K/Li = <1% to each other when
Limit of detection (LOD) and limit LOD LOQ Na – 0.03ppm Na – 0.1ppm K – 0.02ppm K – 0.05ppm Ca – 0.3ppm Ca – 1ppm |
Time to stability
Ions measured Simultaneous measurement of Na, K, and Ca
Interfaces USB 0-2.5 volt output Optional 4-20mA output in place of .CSV and .PDF generated reports and files via FP-PC software
Recommended minimum warm up time 21ºC – 25 minutes
Fuel requirement Propane, Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min *with modifications. BWB Technologies recommends either Propane or |
