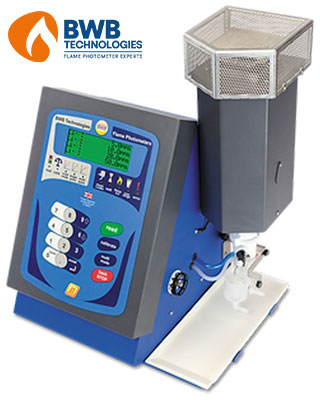

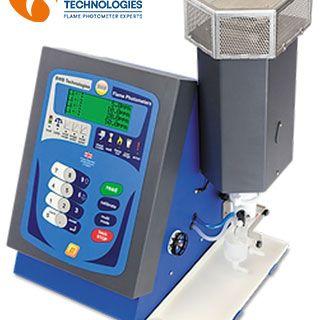

Nuclear四通道火焰光度計
產品型號：Nuclear
這款獨特的火焰光度計是我們與德國的傑出經銷商 Wolfgang Glock 先生共同合作設計，具有 4 個用於鋰檢測的主動通道。每個通道都在檢測限範圍內獨立校準，從而提高了準確性，以滿足行業需求。
這款獨特的火焰光度計是我們與德國的傑出經銷商 Wolfgang Glock 先生共同合作設計，具有 4 個用於鋰檢測的主動通道。每個通道都在檢測限範圍內獨立校準，從而提高了準確性，以滿足行業需求。
每個偵檢測通道皆可同步偵測與顯示，並可透過兩線式類比輸出( 4-20m A)與SCADA™系統連接，使裝置可進行線上資料採集與監控。
透過我們的 FP-PC 應用程式輸出數據，可以透過互聯網或內部網路共享數據，以便用戶共享資訊。
客戶可以利用我們獨特的選配功能「Collection Cup」，實現線上即時的分析以及連續測量。兩線式類比輸出連接，可以將 BWB NUCLEAR FES 升級為「線上」、即時、全天運作的分析儀。藉由兩線式類比輸出( 4-20m A)，BWB FP 可以與任何 SCADA™ 系統無縫整合。
產品特點:
- 4 個鋰檢測通道，專注於高精度鋰測量。
- 支援4-20mA兩線輸出 SCADA™為客戶端設定協定。
- 內建空氣壓縮機。
- 含括基本儀器所需器具，可協助您入門。
- 使用者可選擇小數位。
- 透過 PC 連結與 BWB 的 FP-PC 應用程式共享數據。
- 提供 IQ、OQ、PQ 基於網路的認證。
- 提供 10,000ppm 校正溶液，可製成 15 公升 100ppm 溶液。
- 1ml 和 10ml 移液管（各 10 個）、20ml 樣品杯(100個)、100ml 燒瓶。
| Sample rate | 2 – 3.5ml/min |
|---|---|
| Tubing materials | Silicone and Tygon® |
| Required desk space for Instrument | 50cm (H) x 45cm (W) x 45cm (D) *For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney. |
| Instrument size | Nuclear Flame Photometer 51cm (H) x 39cm (W) x 35cm (D) (20in x 15in x 14in) |
| Shipping | 65cm (H) x 49cm (W) x 43cm (D) (25in x 19in x 17in) |
| Weight | Nuclear Flame Photometer – 14kg (30.8lbs) Shipping – 25kg (55.1lbs) |
| Optimal range | Single point calibration: Li 0.05 – 50ppm |
| Multi Point Calibration | Li 0.05 – 1000ppm |
| Reproducibility | <1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation). |
| Chemical Interference | Na/K/Li = <0.5% to each other when equal in concentration at <100ppm |
| Limit of detection (LOD) and limit of quantification (LOQ) | LOD: Li – 0.02ppm LOQ: Li – 0.05ppm |
| Time to stability | Less than 15 seconds after sample is introduced into the flame |
| Ions measured | 4 independent Li channels each providing up to 10 points of calibration |
| Interfaces | USB 0-2.5 volt output (based on sample concentration linked to element of user's choice) Optional 4-20mA output in place of the above Optional integrated printer .csv and .pdf generated reports and files via FP-PC software |
| Recommended minimum warm up time based on ambient temperature | 21ºC – 25 minutes |
| Power requirements | 100V – 250V AC at 50 or 60Hz automatically selecting |
| Fuel requirement | Propane Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min *with modifications. BWB Technologies recommends either Propane or Butane for optimum results. |
| Readout | LCD four line alpha numeric back lit. |
- 4 lithium detection channels focused for high accuracy lithium measurements
- 4-20mA SCADA™ two wire output set to client protocols
- In-built air compressor
- Solutions and labware included
- User selectable decimal places
- Data sharing via PC link with BWB’s FP-PC app
- IQ, OQ, PQ web-based certification available
- 10,000ppm calibration solution supplied, makes 15 litres of 100ppm solution
- 1ml and 10ml pipettes (10 each), 100x’s 20ml sample cups, 100ml flask
| Sample rate | 2 – 3.5ml/min |
|---|---|
| Tubing materials | Silicone and Tygon® |
| Required desk space for Instrument | 50cm (H) x 45cm (W) x 45cm (D) *For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney. |
| Instrument size | Nuclear Flame Photometer 51cm (H) x 39cm (W) x 35cm (D) (20in x 15in x 14in) |
| Shipping | 65cm (H) x 49cm (W) x 43cm (D) (25in x 19in x 17in) |
| Weight | Nuclear Flame Photometer – 14kg (30.8lbs) Shipping – 25kg (55.1lbs) |
| Optimal range | Single point calibration: Li 0.05 – 50ppm |
| Multi Point Calibration | Li 0.05 – 1000ppm |
| Reproducibility | <1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation). |
| Chemical Interference | Na/K/Li = <0.5% to each other when equal in concentration at <100ppm |
| Limit of detection (LOD) and limit of quantification (LOQ) | LOD: Li – 0.02ppm LOQ: Li – 0.05ppm |
| Time to stability | Less than 15 seconds after sample is introduced into the flame |
| Ions measured | 4 independent Li channels each providing up to 10 points of calibration |
| Interfaces | USB 0-2.5 volt output (based on sample concentration linked to element of user's choice) Optional 4-20mA output in place of the above Optional integrated printer .csv and .pdf generated reports and files via FP-PC software |
| Recommended minimum warm up time based on ambient temperature | 21ºC – 25 minutes |
| Power requirements | 100V – 250V AC at 50 or 60Hz automatically selecting |
| Fuel requirement | Propane Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min *with modifications. BWB Technologies recommends either Propane or Butane for optimum results. |
| Readout | LCD four line alpha numeric back lit. |
