雙靜電計電化學工作站
Interface 5000E™ 恒電位儀是一款功能齊全的恒電位/恒電流儀，用於電池測試。 它也是燃料電池和超級電容測試的理想選擇。
主要功能包括 :
- 雙靜電計
- 最大應用電位 - ±6 V
- 最大電流 - +/- 5A
- EIS - 10 μHz - 1 MHz
適用的技術包括 :
- 電化學能源
- 孔蝕臨界溫度
- 脈衝伏安法
- EIS
產品特點

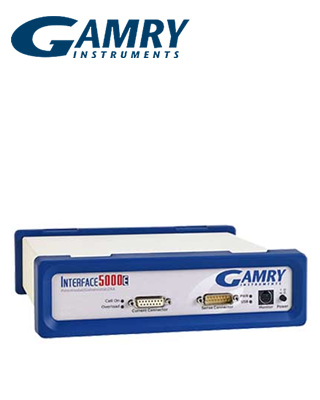

Interface 5000E 恒電位儀
Interface 5000E 恆電位儀專為各種能量儲存和轉換裝置的電池級測試而設計，除了在實驗期間監測整個電池電壓之外，還具有監測半電池電壓的功能。

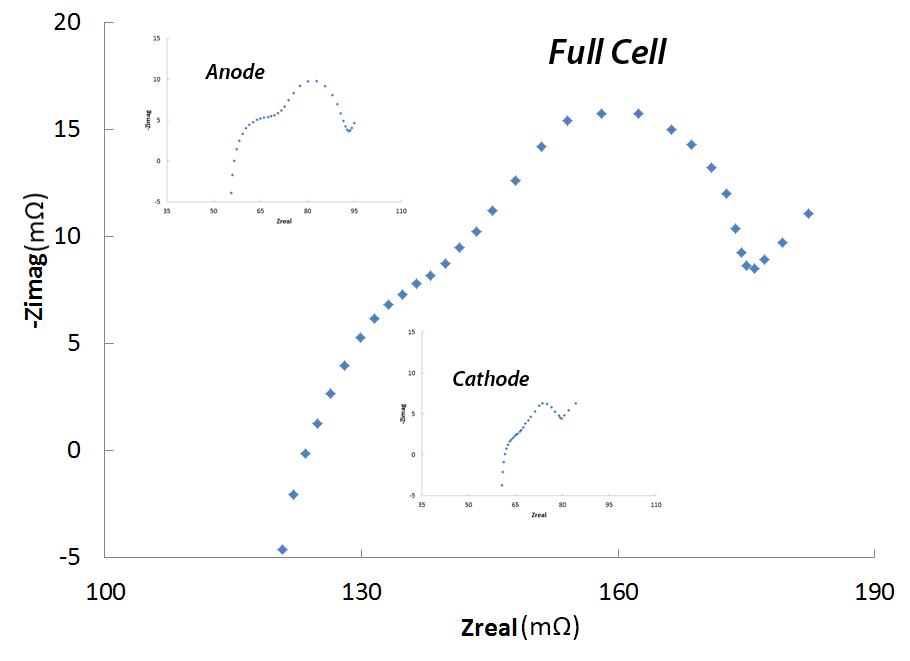

雙靜電計
第二個靜電計使您能夠在典型的三電極設置中監測兩個半電池。除了在充放電實驗和 EIS 實驗中監測整個電池外，您還可以監測陽極和陰極。

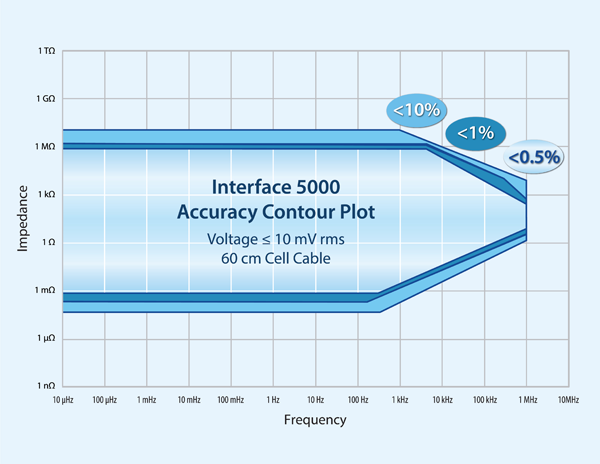

精確度等值線圖
精確度等值線圖可讓您詳細瞭解儀器在實際情況下的性能表現。結果包括測試電纜。精確度等值線圖非常重要，因為它可以讓您比較不同製造商的性能，以確保您獲得最佳的測量結果。
多通道恒電位儀
Interface 5000E 可設定為單通道恒電位、雙電位或多通道恒電位，為您提供完成更多工作所需的靈活性。
更多詳細資訊
以下是 Interface 5000E 型恒電位儀功能的其它詳細資訊。每個要點都包含可讓恒電位儀運行的技術類型清單。
- 電化學能源 - 測試 各種電池、燃料電池或超級電容的單個電池和堆疊電池。包括充電、放電、迴圈充放電技術、恒電位、恒電流、自放電、漏電率和讀取電池電壓。
- 電化學阻抗譜 - 除了莫特-肖特基 ( Mott-Schottky ) 等單頻技術外，還包括用於恆電位、恆電流和混合阻抗譜實驗的實驗腳本。我們還擁有獨特的功率平均多正弦技術，可改善整個頻譜的雜訊比。在分析方面，它提供了用於將頻譜擬合到等效電路模型的工具、用於數據驗證的 Kramers-Kronig 變換和圖形模型編輯器。我們的軟體甚至包含 EIS 模擬的腳本。
- 物理電化學 - 諸如週期伏安法、計時電流法、計時電位計等技術，以及這些技術的衍生技術。
- 脈衝伏安法 - 脈衝伏安法、方波伏安法等技術，以及相關的剝離技術，例如陽極剝離伏安法。
- 直流腐蝕 - 進行標準的直流腐蝕測試，例如極化電阻、電位動力、循環極化和電偶腐蝕，以及其它一些測試。
• 電化學訊號分析儀 - 專為擷取和分析與時間相關的電化學雜訊訊號而設計。以 0.1 Hz 至 1 kHz 的速率持續監測電池電壓和電流。功能齊備的分析工具提供強大的分析功能，例如統計分析、去趨勢、阻抗譜和直方圖分析。 - 電化學頻率調變 - 一種非破壞性的腐蝕率量測技術。它允許在不事先知道 Tafel 常數的情況下測量腐蝕速率。此外，此技術還可確定 Tafel 常數，並提供 2 個內部有效性檢查。
- 孔蝕臨界溫度- 控制 Gamry 恒電位儀、TDC5 溫度控制器及相關附件，以自動測量材料的孔蝕臨界溫度。
- 電化學雜訊 - 較一般的電化學雜訊測試形式。它也是與 ECM8 Multiplexer 相容的電化學雜訊軟體套件。
- eChemDC Toolkit - 包含 eChemBasic的所有功能，並進一步擴充這些功能，增加進階訊號和資料擷取模式，以簡化執行實驗，如循環伏安法、脈衝伏安法和動態直流腐蝕技術。還包括更先進的停止測試，對快速實驗特別有用。
- eChemAC - 包含 eChemDC Toolkit 的全部功能，並允許進行電化學阻抗譜 (EIS) 和 EFM 實驗。
一般規格 - 2、3、4 和 5 電極測量。
- 除了測量全電池電壓之外，還可測量兩個半電池電壓。
- 電氣隔離
- 浮動式儀器：與高壓釜、機械應力儀器或管道探針一起使用。
- 可攜式
- 化學教科書大小，重量僅 3 公斤 (6.6 磅)。可輕鬆以 USB 2.0 連接至 Windows 電腦。
- 內建 EIS
- 內建 DDS，可執行 10 µHz 至 1 MHz 的 EIS。
- DSP (數位訊號處理) 模式
- 大量取樣可改善雜訊比，並進行精確的電容量測。
- 電流中斷 iR 補償
- Gamry 恒電位儀及其控制軟體使用控制迴路演算法來精確量測和修正未補償電阻。
- 輔助 I/O
- 透過額外的 I/O 介面控制其他設備：外部訊號輸入、類比電壓輸出、類比電流輸出、輔助 A/D 輸入和數位 I/O 連接器。
- 用於溫度測量的 RTD 探棒。

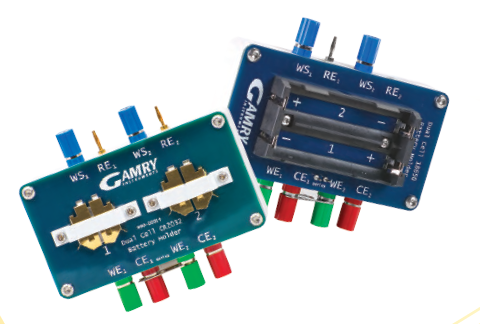

適用於18650和CR2032電池夾具

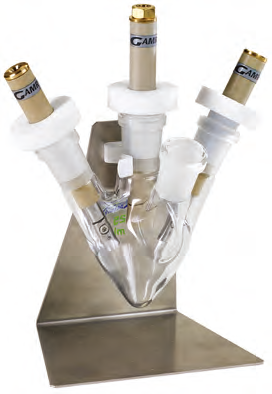

鋰離子電池材料測試電解槽組
|
系統 |
|
|
電極連接 |
2, 3, 4 or 5 |
|
最大電流 |
±5 A |
|
電流範圍 |
6 (50 μA - 5 A) |
|
電流範圍（包括內部增益） |
8 |
|
最小電流解析度 |
15 pA |
|
最大應用電位 |
±6 V |
|
上升時間 |
<1 μs |
|
最小時基 |
10 μs |
|
雜訊與漣波 |
<20 μV rms |
|
|
|
|
控制放大器 |
|
|
合規電壓 |
±8.5 / ±2.5 V |
|
輸出電流 |
>±5 A |
|
速度設定 |
5 |
|
單一增益頻寬 |
1050, 250, 43, 4.4, 0.5 kHz |
|
|
|
|
EIS測量 |
|
|
EIS 頻率 |
10 μHz - 1 MHz |
|
EIS 精確度 |
|
|
電壓AC 振幅 |
3 V maximum |
|
電流AC振福 |
5 A maximum |
|
|
|
|
靜電計 |
|
|
輸入阻抗 |
>1012 Ω || <2 pF |
|
輸入電流（典型值） |
<25 pA |
|
頻寬 |
>12 MHz at -3 dB |
|
CMRR （共模拒次比） |
>98 dB (10 kHz) |
|
|
|
|
電位 |
|
|
應用精確度 |
±1 mV ±0.2% of setting |
|
應用解析度 |
200 μV, 50 μV, 12.5 μV/bit |
|
測量精確度 |
±0.5 mV ±0.2% of reading |
|
測量解析度 |
200 μV, 20 μV, 2 μV/bit |
|
|
|
|
電流 |
|
|
應用/測量精確度 |
±25 pA ±0.05% of range ±0.2% of value |
|
應用解析度 |
0.0033% full-scale/bit |
|
頻寬 |
>5 MHz (5 mA) |
The Interface 5000E™ potentiostat is a fully-featured potentiostat/galvanostat for battery testing. It is also ideally designed for testing of fuel cells and supercapacitors.
Key features include:
- Dual Electrometer
- Maximum Applied Potential - ±6 V
- Maximum Current - +/- 5A
- EIS - 10 μHz - 1 MHz
For techniques including:
- Electrochemical Energy
- Critical Pitting Temperature
- Pulse Voltammetry
- EIS
System Highlights

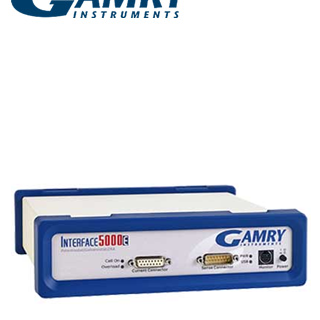

Interface 5000E Potentiostat
The Interface 5000E potentiostat is designed for cell-level testing of various energy storage and conversion devices and includes capabilities for monitoring both half cell voltages in addition to the whole cell voltage during an experiment.
Dual Electrometer
A second electrometer gives you the ability to monitor both half cells in a typical three electrode setup. You can monitor both the anode and cathode in addition to the entire cell in charge/discharge experiments and EIS experiments.
Accuracy Contour Plot
The accuracy contour plot provides a detailed look at the performance you can expect from your instrument in real-world situations. The results include the cell cable. Accuracy contour plots are important because they let you compare the performance of different manufacturers to ensure you are getting the best possible measurement.
Multichannel Potentiostat
The Interface 5000E can be configured as a single-channel potentiostat, bipotentiostat, or multichannel-potentiostat providing you with the flexibility you need to get more done.
More Details
Below are additional details regarding the capabilities of the Interface 5000E potentiostat. Each bullet point contains a list of the type of techniques available for the potentiostat to run.
-
Electrochemical Energy - Test single-cells and stacks of various batteries, fuel cells or supercapacitors. Includes charge, discharge, cyclic charge-discharge techniques, potentiostatic, galvanostatic, self-discharge, leakage rate, and read cell voltage.
-
Electrochemical Impedance Spectroscopy - Includes experimental scripts for potentiostatic, galvanostatic and hybrid impedance spectroscopy experiments in addition to single frequency techniques like Mott-Schottky. We also have our unique power-leveling multisine technique that improves signal-to-noise across the spectrum. On the analysis side, it provides tools for fitting spectra to equivalent circuit models, Kramers-Kronig transform for data validation and a graphical model editor. Our software even includes a script for EIS simulation.
-
Physical Electrochemistry - Techniques such as cyclic voltammetry, chronoamperometry, and chronopotentiometry and derivatives of these techniques.
-
Pulse Voltammetry - Techniques such as pulse voltammetry, square wave voltammetry, and associated stripping techniques such as anodic stripping voltammetry.
-
DC Corrosion - Run standard DC corrosion tests such as polarization resistance, potentiodynamic, cyclic polarization, and galvanic corrosion in addition to a number of others.
-
Electrochemical Signal Analyzer - Designed specifically for the acquisition and analysis of time-dependent electrochemical noise signals. Cell voltage and current are continuously monitored at rates from 0.1 Hz to 1 kHz. A full featured set of analysis tools provides powerful analysis features such as statistical analysis, detrending, impedance spectra, and histogram analysis.
-
Electrochemical Frequency Modulation - A non-destructive corrosion rate measurement technique. It allows for measurement of the corrosion rate without prior knowledge of the Tafel constants. In addition, the technique determines the Tafel constants and provides 2 internal validity checks.
-
Critical Pitting Temperature - Controls a Gamry Potentiostat, TDC5 Temperature Controller, and associated accessories to automatically measure the Critical Pitting Temperature of a material.
-
Electrochemical Noise - A more general form of electrochemical noise testing. It is also an ECM8 Multiplexer compatible electrochemical noise software package.
-
eChemDC Toolkit - contains all of the capabilities of the eChemBasic and further extends these capabilities by adding advanced signals and data acquisition modes to simplify implementing experiments like cyclic voltammetry, pulse voltammetry, and dynamic DC corrosion techniques. Also includes more advanced stop tests, particularly useful in fast experiments.
-
eChemAC Toolkit - Includes full capabilities of eChemDC Toolkit plus allows electrochemical impedance spectroscopy (EIS) and EFM experiments.
Other details
- 2, 3, 4 and 5 electrode measurements
- Measure both half cell voltages in addition to the full cell voltage
- Electrical Isolation
- Floating instrument: use with autoclaves, mechanical stress apparatus, or pipeline probes.
- Portable
- Size of a chemistry textbook, weighing only 3 kgs (6.6 lbs). Easy USB 2.0 connection to a Windows computer.
- Built-In EIS
- On-board DDS to perform EIS from 10 µHz to 1 MHz.
- DSP (Digital Signal Processing) Mode
- Oversamples for improved signal-to-noise and accurate capacitance measurements.
- Current Interrupt iR Compensation
- Gamry potentiostats and their controlling software use control loop algorithms to accurately measure and correct for uncompensated resistance.
- Auxiliary I/O
- Control additional equipment via additional I/O interfaces: external signal input, analog voltage output, analog current output, auxiliary A/D input, and digital I/O connector.
- RTD probe for temperature measurements
- Warranty
- Protected by 2-year factory service warranty.
Specifications
SYSTEM |
|
| Cell Connections | 2, 3, 4 or 5 |
| Maximum Current | ±5 A |
| Current Ranges | 6 (50 μA - 5 A) |
| Current Ranges (including internal gain) |
8 |
| Minimum Current Resolution | 15 pA |
| Maximum Applied Potential | ±6 V |
| Rise Time | <1 μs |
| Minimum Time Base | 10 μs |
| Noise and Ripple | <20 μV rms |
CONTROL AMPLIFIER |
|
| Compliance Voltage | ±8.5 / ±2.5 V |
| Output Current | >±5 A |
| Speed Settings | 5 |
| Unity Gain Bandwidth | 1050, 250, 43, 4.4, 0.5 kHz |
EIS MEASUREMENT |
|
| EIS | 10 μHz - 1 MHz |
| EIS Accuracy | See Accuracy Contour Plot |
| Voltage AC Amplitude | 3 V maximum |
| Current AC Amplitude | 5 A maximum |
ELECTROMETER |
|
| Input Impedance | >1012 Ω || <2 pF |
| Input Current (typical) | <25 pA |
| Bandwidth | >12 MHz at -3 dB |
| CMRR | >98 dB (10 kHz) >88dB (100 kHz) |
POTENTIAL |
|
| Applied Accuracy | ±1 mV ±0.2% of setting |
| Applied Resolution | 200 μV, 50 μV, 12.5 μV/bit |
| Measured Accuracy | ±0.5 mV ±0.2% of reading |
| Measured Resolution | 200 μV, 20 μV, 2 μV/bit |
CURRENT |
|
| Applied/Measured Accuracy | ±25 pA ±0.05% of range ±0.2% of value |
| Applied/Measured Resolution | 0.0033% full-scale/bit |
| Bandwidth | >5 MHz (5 mA) |
