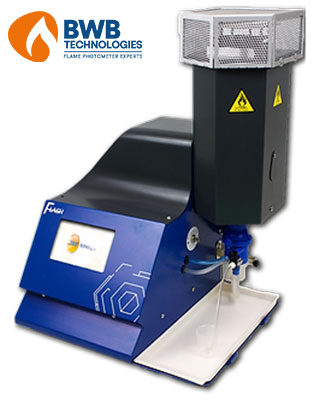

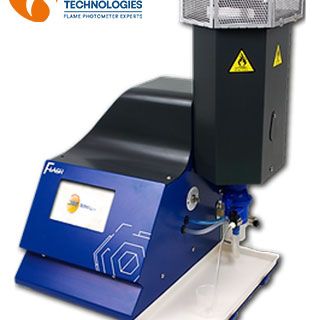

Flash 四通道火焰光度計
BWB Flash 最新推出的火焰光度計，是第一個也是唯一一個完全可配置的、最多四通道的火焰光度計，可同時偵測並顯示所有校準離子。BWB Flash 的啟發是基於我們屢獲殊榮的 XP 型號與創新的尖端技術相結合，提供無與倫比的準確性、可用性和可靠性，同時顯著縮短分析時間，並將以往的鍵盤與LCD螢幕升級為5吋彩色電容觸控螢幕，讓使用者的操作體驗更加流暢。當需要不同的測量時，我們的客戶不再需要浪費寶貴的時間更換過濾器和重新校準，而這是從 1951 年至今所有其他火焰光度計設計的常見要求。
它的金屬外殼提供可攜式儀器必須的堅固外，並為未來的回收利用提供了機會。盡可能使用符合 ROHS 標準的組件和材料。
BWB 碳足跡極低，始終堅持著成為負責任製造商的企業為目標，與先前推出的幾代型號相比，我們成功地將天然氣消耗率降低了 13%，同時將電力消耗 (kWh) 降低了 26%。
與其它對重要配件收取額外費用的製造商不同，BWB 包含開箱即用的產品所需的一切。只需加氣體！！（如 : 丙烷、液化石油氣或丁烷）。
我們還提供通過USB從BWB Flash的數據共享到您的PC。這將BWB火焰發射光譜儀（FES）的輸出連接到網際網路或您的公司內部網系統，並促進分佈式控制，這對跨國公司、大學和各種政府機構至關重要。
BWB Flash系列共提供 7 種不同的型號做選擇，皆具有各種不同的偵測功能。下表詳細介紹了各個型號所對應的檢測元素：
| 型號 | 檢測元素 |
| FL-C | CA |
| FL-K | K |
| FL-L | Li |
| FL-N | Na |
| FL-2 | Na、K |
| FL-3 | Na、K、Li |
| FL-4 | Na、K、Li、Ca |
產品特點:
- 大型 5 吋觸控螢幕，可與大多數一次性實驗室手套相容。
- 大按鈕和易於理解的文字和符號，真正易於使用。
- 內建空氣壓縮機和氣體調節器。
- 提供校準標準品，濃度為 10,000ppm。
- 自動讀取技術使操作員能夠獨立確定結果。
- 使用者可選擇小數位。
- 提供 IQ、OQ、PQ 基於網路的認證：IQ OQ PQ 是分析儀器領域完全獨特的。有英語、俄語、德語、普通話、法語和西班牙語版本。更多語言正在開發中。
- 含括基本儀器所需器具，可協助您入門。
|
Sample rate 2.5 – 4ml/min
Tubing materials Silicone and Tygon®
Required desk space for Instrument 101*cm (H) x 45cm (W) x 35cm (D) *For Safety reasons the Flame photometer
Instrument size Flash Photometer
Shipping
Weight Flash Photometer – 10kg (22.1lbs) Shipping – 18kg (39.7 lbs)* *subject to vary based on accessories included
Power requirements 100V – 250V AC at 50 or 60Hz automatically selecting
Readout 5" colour capacitive touch screen display |
Optimal range Single point calibration Na 0.1 – 60ppm K 0.05 – 100ppm Li 0.05 – 50ppm Ca 1.0 – 100ppm
Multi Point Calibration (with dilution) Na 0.1 – 1000ppm K 0.05 – 1000ppm Li 0.05 – 1000ppm Ca 1.0 – 1000ppm
Reproducibility <1% Coefficient of variability for 20 consecutive
Specificity Na/K/Li = <1% to each other when
Limit of detection (LOD) and LOD LOQ Na – 0.03ppm Na – 0.1ppm K – 0.02ppm K – 0.05ppm Li – 0.02ppm Li – 0.05ppm Ca – 0.3ppm Ca – 1ppm
|
Time to stability Less than 15 seconds after sample is introduced
Ions measured Simultaneous measurement of model specific
Interfaces USB 0-2.5 volt output (based on sample concentration Optional 4-20mA output in place of the above Optional integrated printer .csv and .pdf generated reports and files via FP-PC
Recommended minimum warm up time based 21ºC – 25 minutes
Fuel requirement Propane, Butane or Natural Gas Flow rate of 0.4l/min *with modifications. BWB Technologies recommends |
