鉀和鈉檢測現在已可以進行全天候的在線檢測，具有獨特配置的檢測通道，可在鉀控制範圍內實現極高的準確性。
透過專有的 BWB 光學陣列檢測系統進行具體調整和優化，這項制勝公式使得該系統可以在單通道檢測中精確的量測Na與K。

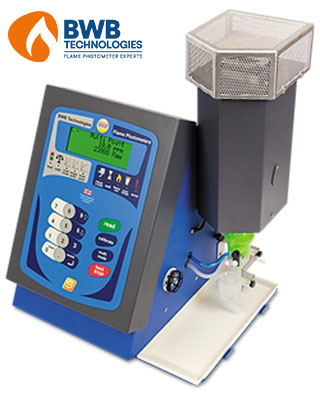

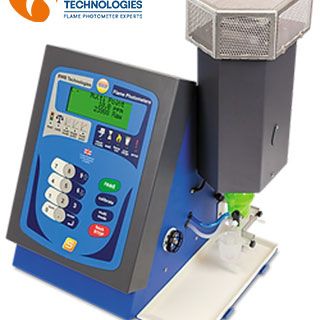

這款特殊的火焰光度計是為全球糖生產市場需求和設計的。
幾十年來，有一些傳統的火焰光度計製造商一直服務於這個市場，但現在這些曾經強大而出色的設備即將停產。
BWB SUGAR 火焰光度計是具有專門的鉀和鈉通道的檢測功能，並提供針對鉀和鈉的混合特定需求的多點校準解決方案。
此外，根據客戶的要求，我們的Collection Cup為我們的混合室/檢測系統提供實時的樣品檢視，“Collection Cup”系統還提供約5 毫升/分鐘的進料方式，並且僅要求樣品與環境溫度相近即可。
FP/PC APP
這種完全獨特的 BWB 功能允許透過內部網路或互聯網連結共享多個安裝詳細信息，從而透過單一中控室提供“分散式控制”，工作人員完全遠離煉油廠現場本身。對於在世界各地擁有多個站點的大型糖業公司來說，這使得可以從世界任何地方的集中位置獲取專業知識，並即時進行幾乎無限的數據累積和分析。
可輸出.csv 檔案格式，可讓使用者建立新穎且專有的 Excel 電子表格並快速有效地共享資料。
產品特點:
- 獨特的混合 BWB 雙通道，專注於高精度鉀和鈉測量。
- 可用“IRS”（內部參考標準）。
- 支援4-20mA 兩線輸出相容SCADA軟體。
- 支援即時線上監控系統。
- 使用專有的 BWB 收集杯提供恆定的冷凝流。
- 內置空氣壓縮機；由 BWB於 2007 年首創，現已在全球現場使用超過 1000 台設備得到驗證。
- 含括基本儀器所需器具，可協助您入門。
- 使用者可選擇小數位。
- 直覺的使用者介面真正易於使用。
- 顯示提示引導操作。
- 透過 PC 連結與 BWB 的 FP-PC 應用程式共享數據。
Instrument Specifications
| Specification | Details |
|---|---|
| Sample rate | 2 – 3.5ml/min |
| Tubing materials | Silicone and Tygon® |
| Required desk space for Instrument | 50cm (H) x 45cm (W) x 45cm (D) *For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney. |
| Instrument size | Sugar Flame Photometer 51cm (H) x 39cm (W) x 35cm (D) (20in x 15in x 14in) |
| Shipping | 65cm (H) x 49cm (W) x 43cm (D) (25in x 19in x 17in) |
| Weight | Sugar Flame Photometer – 14kg (30.8lbs) Shipping – 25kg (55.1lbs) |
| Power requirements | 100V – 250V AC at 50 or 60Hz automatically selecting |
| Readout | LCD four line alpha numeric back lit. |
| Optimal range | Single point calibration Na 0.1 – 60ppm K 0.05 – 100ppm |
| Multi Point Calibration | Na 0.1 – 1000ppm K 0.05 – 1000ppm |
| Reproducibility | < 1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation). |
| Specificity | Na/K/Li = < 1% to each other when equal in concentration at < 100ppm |
| Limit of detection (LOD) and limit of quantification (LOQ) | LOD Na – 0.03ppm K – 0.02ppm LOQ Na – 0.1ppm K – 0.05ppm |
| Time to stability | Less than 15 seconds after sample is introduced into the flame |
| Ions measured | Potassium, Sodium |
| Interfaces | USB 4-20mA output capable of direct link to SCADA systems Optional integrated printer .CSV and .PDF generated reports and files via FP-PC software |
| Recommended minimum warm up time based on ambient temperature | 21ºC – 25 minutes |
| Fuel requirement | Propane, Butane or Natural Gas *regulated to 19Bar. Flow rate of 0.4l/min *with modifications. BWB Technologies recommends either Propane or Butane for optimum results. |
- Uniquely hybridized BWB dual channel, focused for high accuracy potassium and sodium measurements
- “IRS” (Internal Reference Standard) available
- 4-20mA 2-wire output compatible with SCADA software
- Live online monitoring
- Constant condensation stream feeds with use of the proprietary BWB collection cup
- Built-in air compressor; pioneered by BWB technologies in 2007 and proven now with over 1000 units in global field use
- Solutions and labware included; “Just Add Gas”, the hallmark of the user friendly BWB flame photometer (FES) program
- User selectable decimal places
- Intuitive user interface for true ease of use
- Display prompts step by step operation
- Data sharing via PC link with BWB’s FP-PC app
Instrument Specifications
| Specification | Details |
|---|---|
| Sample rate | 2 – 3.5ml/min |
| Tubing materials | Silicone and Tygon® |
| Required desk space for Instrument | 50cm (H) x 45cm (W) x 45cm (D) *For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney. |
| Instrument size | Sugar Flame Photometer 51cm (H) x 39cm (W) x 35cm (D) (20in x 15in x 14in) |
| Shipping | 65cm (H) x 49cm (W) x 43cm (D) (25in x 19in x 17in) |
| Weight | Sugar Flame Photometer – 14kg (30.8lbs) Shipping – 25kg (55.1lbs) |
| Power requirements | 100V – 250V AC at 50 or 60Hz automatically selecting |
| Readout | LCD four line alpha numeric back lit. |
| Optimal range | Single point calibration Na 0.1 – 60ppm K 0.05 – 100ppm |
| Multi Point Calibration | Na 0.1 – 1000ppm K 0.05 – 1000ppm |
| Reproducibility | < 1% Coefficient of variability for 20 consecutive samples over ten minutes at concentrations of 100ppm or less. (After instrument stabilisation). |
| Specificity | Na/K/Li = < 1% to each other when equal in concentration at < 100ppm |
| Limit of detection (LOD) and limit of quantification (LOQ) | LOD Na – 0.03ppm K – 0.02ppm LOQ Na – 0.1ppm K – 0.05ppm |
| Time to stability | Less than 15 seconds after sample is introduced into the flame |
| Ions measured | Potassium, Sodium |
| Interfaces | USB 4-20mA output capable of direct link to SCADA systems Optional integrated printer .CSV and .PDF generated reports and files via FP-PC software |
| Recommended minimum warm up time based on ambient temperature | 21ºC – 25 minutes |
| Fuel requirement | Propane, Butane or Natural Gas *regulated to 19Bar. Flow rate of 0.4l/min *with modifications. BWB Technologies recommends either Propane or Butane for optimum results. |
