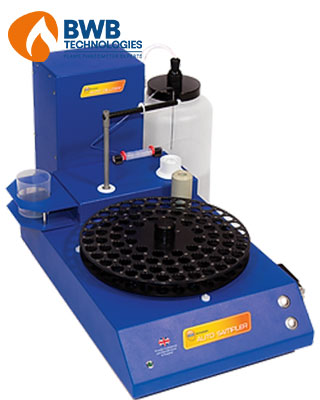

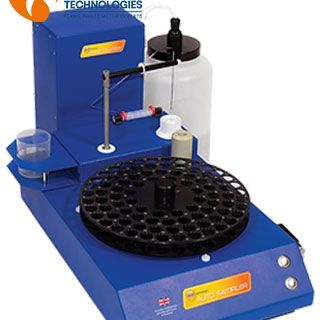

自動流體處理系統(AFHS)
產品型號：BWB AFHSBWB 客戶們依賴著我們的儀器，而這些儀器可能全天運行，處理數十甚至數百個樣品。到目前為止，全程的操作一直是手動過程，需要操作員在現場引入每個樣品。許多組織機構都在努力提高其實驗室流程的效率和自動化程度，為此，BWB 提供了解決方案。新型自動流體處理系統 (AFHS) 首次實現了火焰光度測定過程的快速、可靠和有效的自動化。
特點:
新的「AutoRead」技術是自動化的基礎，自動化系統的目標是在不需要人工干預的情況下準確、可靠和自主地執行任務。透過對多通道偵測器的輸入端進行巧妙的軟體/硬體處理，使得讀數的穩定性是透過儀器本身分析確定，而不再是使用者的主觀決定。
產品特點:
- 圍繞 BWB 專有的“AutoRead”技術構建。
- 可用“IRS”（內部參考標準）。
- 與所有 2014 年及以後的 BWB 火焰光度計型號相容。
- 使用者可選5個托盤的校準點。
- 用戶可選擇稀釋比例。
- 專用自動稀釋器。
- 使用 BWB 整合印表機可按照需求列印關鍵分析數據。
- 自動進樣器和自動稀釋器共用一個電源。
- 可容納多達 89 個樣本。
- 可互換的樣品托盤。
- 額外的樣品托盤可用於 1ml 和 3ml 樣品杯。
- 大量樣品杯利於當天檢驗流程，以防止延誤。
|
Sample rate 4ml/min
Tubing materials Translucent PTFE and Tygon®
Required desk space for Instrument 50cm (H) x 65cm (W) x 63cm (D)* *XP Flame photometer with BWB Recommended set up positioning.
Instrument size XP Flame Photometer
Auto Diluter
Auto Sampler
Shipping *Inclusive of Cannula operating arm.
Weight XP Flame Photometer – 15.3kg (33.7lbs)
Shipping |
Amount of fluid used per sample DR1 – 5.0ml
Specificity Na/K/Li = <0.5% to each other when equal
Optimal range Single point calibration Na 0.1 – 60ppm K 0.05 – 100ppm Li 0.05 – 50ppm Ca 1.0 – 100ppm Ba 1.6 – 100ppm
Multi Point Calibration Na 0.1 – 1000ppm K 0.05 – 1000ppm Li 0.05 – 1000ppm Ca 1.0 – 1000ppm Ba 5.0 – 3000ppm
Reproducibility <1% Coefficient of variability for 10 consecutive samples within
Limit of detection (LOD) and LOD LOQ Na – 0.1ppm Na – 0.3ppm K – 0.05ppm K – 0.15ppm Li – 0.05ppm Li – 0.15ppm Ca – 1ppm Ca – 3ppm Ba – 1.6ppm Ba – 15ppm
Time to stability Less than 15 seconds after sample is introduced into the flame |
Single sample time With Auto Diluter: 130 Seconds including Without Auto Diluter: 80 Seconds including Acquisition and flush.
Amount of samples measured per hour With Auto Diluter: 25
Dilution reservoir size
Amount of samples per dilution reservoir *dependent on idle times between trays
Amount of samples per tray
Interfaces USB 0-2.5 volt output Optional 4-20mA output in place of the above Optional integrated printer .csv and .pdf generated reports and files via FP-PC software
Recommended minimum warm up 21°C – 40 minutes
Power requirements 100V – 250V AC at 50 or 60Hz
Fuel requirement Propane, Butane or Natural Gas* *with modifications. BWB Technologies
Readout LCD, four line, alpha numeric, back lit. |
